Top Cryogenic Liquid Storage Tank/ lox storage tank

FOB Reference Price:Get Latest Price
$10,000.00 - $50,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CF-10000/24
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Hangtong
Dimension(L*W*H):
~5900*2216*2300mm
Capacity:
10m3
Weight:
18.7TONS
After-sales Service Provided:
Field maintenance and repair service
Warranty:
1 Year
Storage Medium::
LIN/LOX
Effective Volume::
10m3
Max. Working Pressure::
24bar
Geometric volume:
10.52m3
Main Material::
SA240M 304/Q245R
Daily Boil-off::
0.46/0.72/0.49 %/d
Empty weight:
~11.4tons
Design temperature::
-196℃/ +40℃
Custom-made::
available
Supply Ability
Supply Ability:
500 Set/Sets per Quarter Cryogenic Liquid Storage Tank
Packaging & Delivery
Packaging Details
Sea Worthy Packing Cryogenic Liquid Storage Tank
Port
Shanghai port
Product Description

1. Storage medium: LO2, LN2, LAr, LCO2 and LNG

2. Working pressure: 0.2MPa ~ 3.0MPa, or as requrested.

3. Effective capacity: 3m³~20,000m³

4. Insulation method: vacuum powder

5. Manufacturing standards: A2, C2, GC1, GB-150, ASME, U STAMP, ISO9001 : 2008

Product Name
Top Cryogenic liquid storage tank
Effective capacity
10000 liters(10m3)
Working pressure
24bar
Material
SA240 304M/Q245R
Medium
LOX,LIN
Empty weight
11400KGS
Dimension
5900*32216*2300mm
Applications
The vacuum insulated cryogenic tank is widely used in machinery, chemical, chemical fiber, medical, food, metallurgy, mining, electronic and military industries.

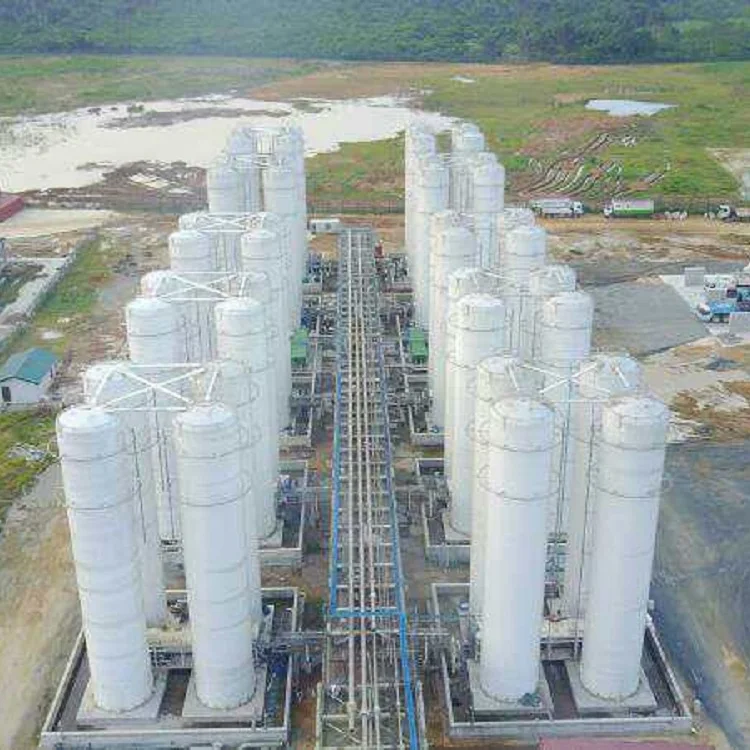

Products Show
Our Service

Pre-sales Service

Communicate with customers, analyze their needs

Sales Service

Provide professional technical solutions, recommend the right models

After-sales Service

For different products, we can quote the EXW, FOB, CFR or CIF price accordingly

Our Company

Factory

The company covers an area of 87,000 m3. We have pressure vessels in a complete range of capacities. Annually, we produce more than 800 storage tanks and more than 20 sets of gas plants.

Workshop

Annually, we produce more than 800 storage tanks and more than 20 sets of gas plants.

Advanced planer

To improve our design, we keep a technical cooperation with PRAXAIR and LINDE and benefit a lot from it. We have our own technical centers, including Sichuan Institute of Cryogenic Equipment, Welding Research Center, Engineering Technology Research Institute, etc. We have more than 100 professional inspection and test people and registered quality engineers.

Pipe prefabrication automatic welding machine

The company has standard digital management system and modern processing equipment. The equipment includes advanced digital underwater plasma cutting machine, automatic TIG welding equipment, aluminum alloy internal-external combination longitudinal-circumferential welding system (USA), etc.

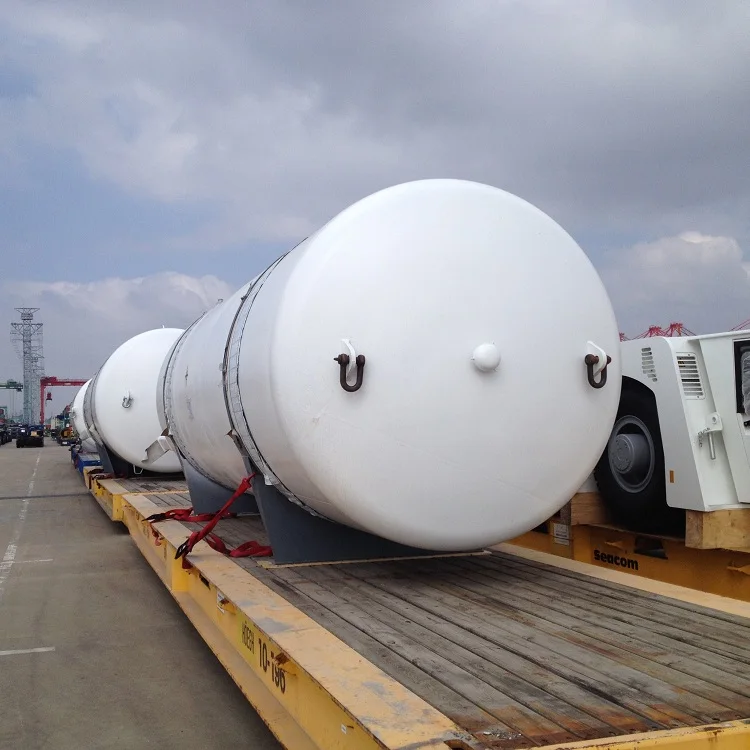

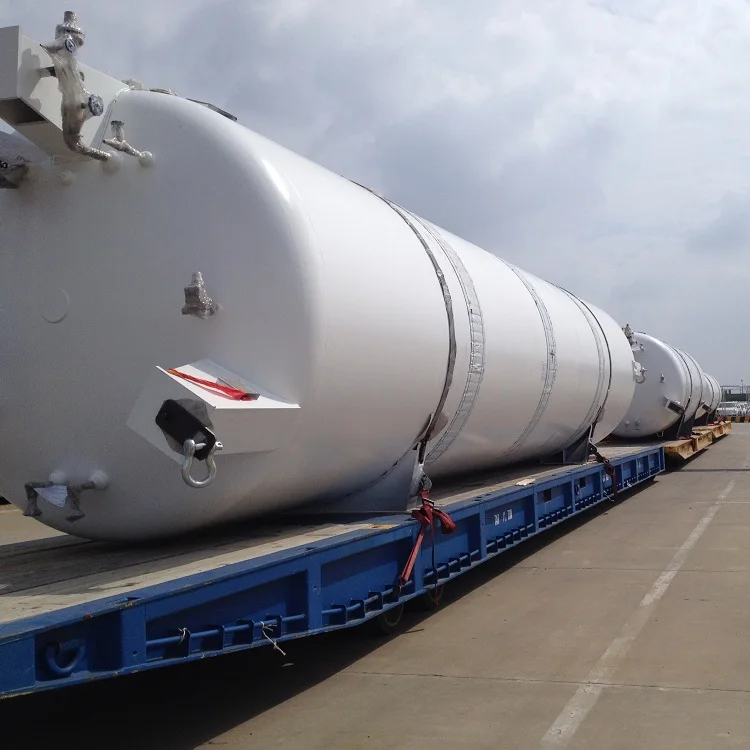

Packing & Delivery

Sound packaging and timely delivery


We take different packing approaches according to specific requirements. Wrapped bags and wooden boxes are commonly used for waterproof, dust-proof and shock-proof purposes, ensuring that every equipment remains in perfect condition after delivery.


In terms of logistics, the company has a large warehouse and a unique 800 ton private-owned wharf. We can deliver 500 tons of oversized cargos directly through the canal to Shanghai port. We also have several highways near us for land transport. We are 180 km from Shanghai port and 80 km from Hangzhou Xiaoshan International Airport. Customer visit and equipment delivery are both very convenient.

Wooden case
Container
Extra-large piece delivery
Skid-packing
Container
Wrapped bags
Our Certifications

Introduction

We gain below quality certification for our products.
National Bureau of Quality Inspection: A2, C2 Class Pressure Vessel Manufacture License; GC2 Class Pressure Piping Installation Permit
International certification: ASME Certificate and U stamp; ISO 9001-2008 Quality Authentication
Industry certificationNational Torch Program Certificate; Hangzhou Famous Trademark Certificate; Zhejiang Famous Brand Product Certificate
Customer Photo

ASU Sold to Linde Group (China)

We are much honored to share you that we successfully deliver two sets ASU (KDN-2200(100Y) & KD0NAr-3000Y/1300Y (4400)/100Y) to Linde Group (China) in 2014. Both start their first operation and had reached productivity as the design expected. After years of effort, we become the strategic partner like linde, messer, praxair, air product etc. We would like to be one of your strategic partners too.

ASU Sold to Qingtuo for Indonesia project

We are much honored to share you that we signed a contract of 12500 Nm3/h O2 air separation plant with Qingtuo Industry Group in 2015. This project will be built in Indonesia.

ASU Sold to Cryoinfra (Mexico)

We are much honored to share you that we successfully deliver another set ASU to Cryoinfra (Mexico) recently. SASPG shook hands with Cryoinfra for the supply of 2nd ASU (Capacity: 1042TPD) in Dec 2012. It was the 2nd ASU that SASPG worked together with Cryoinfra, who is one of the biggest gas supply company in Mexico and a joint venture of AP. Now this 2nd ASU is successfully built and start running.

FAQ

Q: What products I can order from your company?

A: We specialize in producing Cryogenic Air Separation Plant, CO2 Recovery Plant, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), Semi-trailer Tanker, Vaporizer, VPSA/PSA Oxygen/Nitrogen Generator, Cryogenic Liquid Pump, Gas filling Station, Compressor and dry ice making/cleaning machines etc. Any interests you can feel to contact us for details. Thanks.

Q: What is your production standard? Can you manufacture your products under ASME standard?

A: Our company has obtained the A2 and C2, C3 Pressure Vessel Fabrication Certificates, Grade GC1 Pressure Pipe& Vessel Construction Certificates, ISO9001 Quality Certificate, ASME Certificate and U Stamp. So, if you ask for ASME stamp, we are able to manufacture your products under ASME standard.

Q: Have you supplied tanks to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks for them with different sizes. The biggest size we ever provided is 3000m3 ordinary pressure storage tank. We also made high pressure storage vessels for them, such as 100m3 LCO2 tanks, 10m3 (20m3, 30m3)LO2 (LN2, LAR) tanks.

As a giant cryogenic equipment company with more than 40 years history, we are a top two manufacturer producing air separation plants in China. The biggest air separation plant we have ever made is 60,000Nm3/h, famous for its advanced technology and reliable performance.

Q: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first.

Generally speaking, our cryogenic storage tanks can work normally for 15-20 years if it is maintained properly. As a leading brand in China with over 40 years history, reliability and stability of our tanks is much better than small young companies.
