Small Dry ice machine for party/ wedding/ stage effect

FOB Reference Price:Get Latest Price
$10,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CKDP-500
Output:
+3.3V
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
7.5 KW
Ice Shape:
Ice Block
Dimension(L*W*H):
1430mmx1100mmx1600mm
Warranty:
1 Year
After-sales Service Provided:
Online support, No overseas service provided
Condition:
New
Capacity:
500kgs/hr
Place of Origin:
Zhejiang, China
Brand Name:
HangTong
Voltage:
380V, 50-60Hz, 3-phase
Weight:
1200 kgs
Certification:
ISO GB A2 A3
Material:
Liquid Carbon Dioxide
Standard:
ISO/GB ,A2,A3 Standard
Obtaining Efficiency:
≥40% (no less than 400kg dry ice with per 1000kg LCO2)
MOQ:
1 set
Co2 supplying pressure:
9~21bar
Moisture content in LCO2:
≤20PPM
Dry ice density:
≥1.483
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
skid-packing
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Application

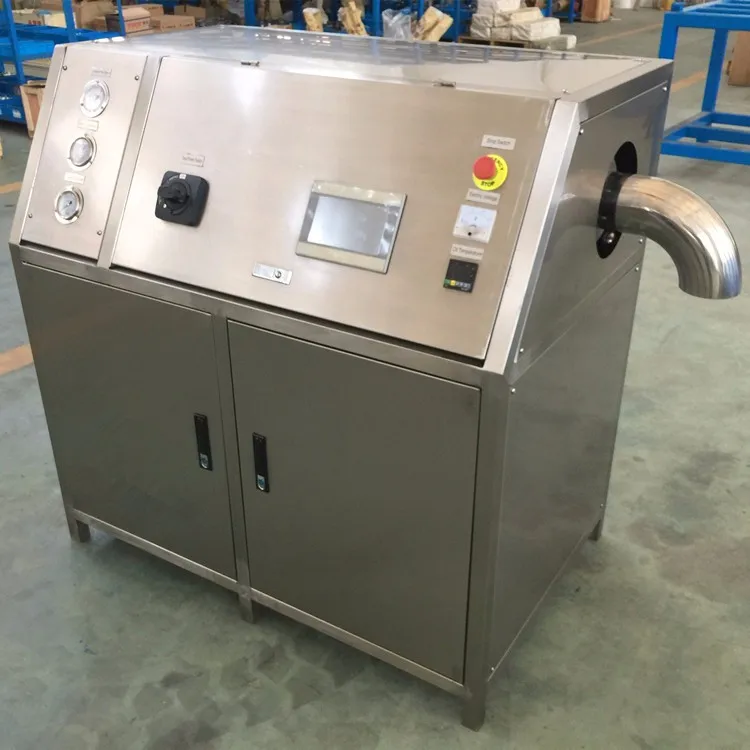

This device is used to produce granular and columnar dry ice. Granular dry ice is the raw material of dry ice cleaning machine while the columnar dry ice is for refrigerated transportation in logistics or as smoke production in restaurants, recreation facilities and wedding etc.This device is suitable for those who consume 1500kg or below dry ice.

Model #
Dry Ice Shape
Dry Ice Output
Dry Ice Size
CKDP-120
Block/Cube
120-185kgs/hr
125mmx105mmx(10-60)mm
CKDP-240
Block/Cube
240 -370kgs/hr
125mmx105mmx(10-60)mm
CKDP-300
Block/Cube
300 -500kgs/hr
210mmx180mmx(20-210)mm

Main Features

1) Products of our company reach the top international standards in terms of practical applications.
2)Well-adapted, and be able to move steadily under the pressure of 1.2-2.1MPa.
 3) Full automatic processing, producing accurate tools  center with multi-functions & multi-specifications;
4) Local realization of full automatic control system ,reaching the international level.

Dry ice application

Cloud Seeding, Keep Perishables Fresh, dry ice fog, freezing fish for sushi, preserve Grain & seeds, Make root beer, get rid of moths, etc.

Matching Equipment


Name: Microbulk

Volume: 1~3m3

Working pressure: 2.2MPa

Loading Medium: Liquid CO2

Available: Yes


Name: Dewar flask
Volume: 450 liters
Working pressure: 3.17MPa

Loading Medium: Liquid CO2

Available: Yes


Name: Dry ice storage bin
Volume: 68 liters

The heat preservation effect:

Dry ice loss of 3%~5% for 24 hours

Weight: 25kgs

Available: Yes

Spare parts

 Our factory has a history of more than 15 years. In recent few years, dry ice machines and dry ice blasting machines enjoy rapid growth in China. Once the factory is still in operation, we could offer you spare parts as required. So, you do not have to worry about availability of spare parts. We will always be with you.

Installation

We do not have any Service center abroad for local installation, but we believe it is not difficult for you to install or operate the machine because we will send you videos as well as operation manuals for guidance. We've done like this with our other clients and nobody feels confused or misunderstanding. The machines were operated well. Actually, most of clients buy these machines through on-line, which means they will not come to China for such a small machine. So far, no problem with any of the buyers, even for those who had not worked in gas industry. Please don't worry too much.

Packing & Delivery
Packaging
Size
1.52m (L) * 1.02m (W) * 1.58m(H)
Weight
680kgs



Packaging Details
The above packing details are based on 50kgs/hr dry ice making machine
(CKDP-P50).

For other models, the package size and gross weight will change accordingly.

The machines will be strictly tested as shown in picture before delivery.
Related Products

We are manufacturer specializing in Cryogenic Air Separation Plant, CO2 Recovery Plant, Cryogenic Liquid Storage Tank (LO2, LN2, LAr, LCO2 and LNG), Semi-trailer Tanker, Vaporizer, VPSA/PSA Oxygen/Nitrogen Generator, Cryogenic Liquid Pump, Gas filling Station, Compressor and dry ice making/cleaning machines etc.
